      Mexico Electronic Invoicing

      Accountability-Click Factura Integration Overview

      Last updated February 4, 2024

      Introduction

      The Mexican government required all businesses to use electronic invoices and live reporting to the tax authorities as of 2014. The process is designed around the CFDI (Comprobante Fiscal Digital por Internet) electronic invoice, which consists of (a) an XML file and (b) a PDF version. The electronic invoice is digitally certified by the Mexican Servicio de Administración Tributaria (SAT).

      This document describes Accountability’s e-invoicing functionality for Mexico through our integration with Click Factura.  Click Factura is a government-approved electronic invoicing company in Mexico. To leverage this integration, the following prerequisites must be met:

      1. The agency must register with SAT for a Federal Taxpayer Registration.
      2. The agency must obtain a unique electronic signature key (FIEL) and Certificado de Sello Digital (CSD) digital stamp for SAT.
      3. The agency must be a Click Factura customer.

      Mexico electronic invoicing

      Overview

      The diagram below describes Accountability’s integration with Click Factura for e-invoicing.

      1. Client invoices
        1. The approved Accountability invoice is automatically transmitted to Click Factura.
          Note:  Best practice is to date the invoice with the same date that you're sending it for stamping. The Invoice Date is automatically updated to the current date if the Invoice Date in Accountability is prior to the current date.
        2. Click Factura verifies the details of the API message, then creates a zip file containing a PDF version of the invoice and an XML file.
        3. Click Factura sends the invoice details, electronic signature key, and tax registration details to the SAT portal for validation
        4. The digitally certified invoice is sent back to Accountability, attached to the invoice generated from the platform, then e-mailed to the client
      2. Cash receipts
        1. The approved Accountability client invoice payment (aka “receipt”) is automatically transmitted to Click Factura. Note" Receipts can only be issued 3 days (or more) after the invoice date.
        2. Click Factura sends the receipt details, electronic signature key, and tax registration details to the SAT portal for validation
        3. The digitally certified receipt is sent back to Accountability, attached to the invoice generated from the platform, then e-mailed to the client

      Click Factura Configuration in Accountability

      The following details are sent from Accountability to Click Factura. The file has multiple sections.



       File section/example

       Description

       COMPROBANTE section

       Document data

       comprobante comprobante = new   comprobante();

       comprobante.ambientePrueba = true;



       folio=

       Internal invoice number

       Populated with the Accountability client   job invoice number without the prefix, e.g.   “000435” will be sent for client job invoice   “P0000435”

       serie=

       Invoice Series

       Populated with the Accountability client   job or sundry invoice prefix, e.g. a client job   invoice would normally be a “P”

       fecha=

       Invoice Issue Date

       This is populated with the invoice approval   date in datetime format, e.g., " 2016-01-   15T16:41:24”

       LugarExpedicion=

       Expedition Place

       This is stored in the Notes for the Office and   sent with the API message based on the   office of the invoice, e.g.,   LugarExpedicion="MEXICO,

        CIUDAD DE MEXICO"

       Moneda=

       Currency

       Currency code on the client job or sundry   invoice, e.g. MXN, USD, etc.

       formaDePago=

       Form of Payment

       This is stored in the Job CDFI Settings.

       metodoDePago=

       Method of Payment

      This is stored in the Job CDFI Settings.

       numeroCuenta = ""



       condicionesPago = ""



       TipoCambio="1.0000"

       Exchange Rate

       This is stored in the Notes for the Office and   sent with the API message based on the   office of the invoice,   e.g.,TipoCambio="1.0000"

       subTotal=

       Sub-total

       The Client Job or Sundry Invoice total   excluding tax, e.g.,   subTotal="82500.000000"

       Note:  This shows a positive value even if it’s   a negative amount.  See tipoCombrobante.

       tipoComprobante=

       If the invoice amount =>0 then “ingreso”   else “egreso”

       total=

       Total

       The Production Invoice/Sundry Invoice total   including tax, e.g. total="95700.000000"   note even if it is a negative value show the   positive value)

       comprobante.descuento = 0.00m;

       Discount

       comprobante.motivoDescuento = "";

       Discount Description

       comprobante.folioFiscalOriginal = "";

       comprobante.serieOriginal = "";

       comprobante.fechaOriginal =   DateTime.Now;

       comprobante.referenciaPago

       comprobante.fechaPago

       These are not sent to Click Factura

       comprobante.logo = ""

       This is not sent to Click Factura.  CF stores   the logo in their database.

       EMISOR Section

       Company Address Data

       emisor emisor = new emisor();



       rfc=

       Tax Number

       This is stored in the Notes for the Office and   sent with the API message based on the   office of the invoice, e.g.,rfc= "RPI041013P7A"

       nombre=

       Name

       This is stored in the Notes for the Office and   sent with the API message based on the   office of the invoice, e.g.,nombre="Global   Agency Inc.”

       calle=

       Street

       This is stored in the Notes for the Office and   sent with the API message based on the .   office of the invoice, e.g.,  calle= "Rio Rhin"

       noExterior=

       External Number

       This is stored in the Notes for the Office and   sent with the API message based on the   office of the invoice, e.g., noExterior="27"

       noInterior=

       Internal Number

       This is stored in the Notes for the Office and   sent with the API message based on the   office of the invoice, e.g., noInterior= "Piso 4"

       colonia=

       Sub-district

       This is stored in the Notes for the Office and   sent with the API message based on the   office of the invoice, e.g.,   colonia="Cuauhtemoc"

       municipio=

       District/Municipality

       This is stored in the Notes for the Office and   sent with the API message based on the   office of the invoice, e.g.,  municipio   ="Cuauhtemoc"

       codigoPostal=

       Postal Code

       This is stored in the Notes for the Office and   sent with the API message based on the   office of the invoice, e.g.,   codigoPostal="06500"

       Localidad=

       Location

       This is stored in the Notes for the Office and   sent with the API message based on the   office of the invoice, e.g., localidad=   "CIUDAD DE MEXICO”

       pais=

       Country

       This is stored in the Notes for the Office   and   sent with the API message based on   the   office of the invoice, e.g.,  pais= "Mexico"

       estado=

       State

       This is stored in the Notes for the Office and   sent with the API message based on the   office of the invoice, e.g.,  estado= "CIUDAD   DE MEXICO”

       emisor.referencia = "";



       Regimen=

       Tax Regime

       This is stored in the Notes for the Office and   sent with the API message based on the   office of the invoice, e.g.,   Regimen=   "Regimen General de las personas morales."

       RECEPTOR section

       Client Address Data

       rfc=

       Tax Number

       Company Number from the Client record.

       nombre=



       Name

       Client Name on the invoice.

       calle=

       Street

       Client Contact Address on the invoice

       receptor.noExterior = ""

       Leave blank, we don’t store this in   AccountAbility

       receptor.noInterior = ""

       Leave blank, we don’t store this in   AccountAbility

       colonia=

       Sub-district

       Client Contacts Address 2 on the invoice

       municipio=

       District/municipality

       Client Contacts City on the invoice

       codigoPostal=

       Postal code

       Client Contacts Zip Code on the invoice

       localidad=

       Location

       Client Contacts State on the invoice

       pais=

       Country

       Client Contact .Country on the invoice

       estado=

       State

       Client Contacts State on the invoice

       receptor.referencia = "";







       Concepto Section

       Services

       Line items or invoice tot, dependent on the   invoice type, i.e. client job invoice vs sundry   invoice

       IF Sundry Invoice

       Accountability creates one ‘Concepto’   record for each sundry invoice line item.

       cantidad= (means quantity)

       Quantity

       Sundry invoice entry units, .e.g., “1”

       descripcion=

       Line item description

       conceptoUno.desglosaIVA = true

       VAT-eligible

       conceptoUno.noIdentificacion = ""



       unidad= (means unit)

       "No Aplica"

       valorUnitario= (means unit value)

       Unit price

       IF tipoComprobante= “ingreso”, show the   line item rate,

       ELSE rate * -1

       PorcentajeIVA

       VAT percentage

       IF Client Job Invoice

       We are going to create a single ‘Concepto’   record for each client job invoice line item,   plus a line  for ‘AGENCY FEE’

       cantidad= (means quantity)

       Quantity

       Units on the line item.  This is set to ‘1’ if the   unit is zero.

       descripcion=

       Line item description

       conceptoUno.desglosaIVA = true



       conceptoUno.noIdentificacion = ""



       unidad= (means unit)

       "No Aplica"

       valorUnitario= (means unit value)

       Unit price

       IF tipoComprobante= “ingreso”, show the   invoice subtotal 2,  else(sub-total   2/cantidad) *-1

       PorcentajeIVA

       VAT percentage

       If Production_Invoice_Entries.Tax = 0, then   0, ELSE   (Production_Invoice_Entries.Tax*100)/(   Production_Invoice_Entries.SubTotal2+   Production_Invoice_Entries.ServiceFee)

       One ‘AGENCY FEE’ record (we only   create this record if the sum of all   Production_Invoice_Entries.ServiceFee   records is <> 0)



       cantidad= (cantidad means quantity)

       “1”

       descripcion=

       “AGENCY FEE”

       conceptoUno.desglosaIVA = true



       conceptoUno.noIdentificacion = ""



       unidad= (means unit)

       "No Aplica"

       valorUnitario= (means unit value)

       IF tipoComprobante= “ingreso”

       Sum of all   (Production_Invoice_Entries.ServiceFee)

       where ProductionInvoiceID = this invoice

       ELSE

       ((Production_Invoice_Entries.ServiceFee)

       where ProductionInvoiceID = this invoice

       )*-1

       PorcentajeIVA

       If the sum of all   Production_Invoice_Entries.Tax = 0, then 0,   ELSE

       Step 1: Sum all   Production_Invoice_Entries.SubTotal where   ServiceFee <> 0

       Step 2: Sum all   Production_Invoice_Entries.ServiceFee   where ServiceFee <> 0

       Step 3: Sum all   Production_Invoice_Entries.Tax where   ServiceFee <> 0

       Step4: ((Step 3*100)/(Step1+ Step2)

       Acciones Section (email)



       acciones.enviarEmail = false;

       acciones.emailEnvio = "";

       acciones.emailEnvioCopia = "";

       acciones.emailEnvioCopiaOculta = "";

       acciones.emailHtml = "";



      Example Office Configuration

      Confirm the URL with Click Factura. This URL is based on the version of the platform that your agency is on.

      version="4.0"
      cfdi uri="http://clickfactura.com.mx/api/timbrado/timbraxml/xxx/timbrarprod"

      cancel uri="http://clickfactura.com.mx/api/timbrado/timbraxml/xxx/cancelar"

      ambientePrueba="false"

      LugarExpedicion="11550"

      TipoCambio="1.0000"

      formaDePago="PAGO EN UNA SOLA EXHIBICION"

      metodoDePago="No identificado"

      nombre="SERVICIOS DIGITALES RAW TALENT"

      rfc="SDR1911015L1"

      calle="HORACIO"

      codigoPostal=11550"

      colonia="POLANCO"

      estado="CDMX"

      localidad="CDMX"

      municipio="MIGUEL HIDALGO"

      noExterior="1022"

      noInterior="NA"

      pais="MEXICO"

      Regimen="601"

      user="agencyname"

      password="password123#"

      email="first.last@clickfactura.mx"

      Use Mexico XML

      Media Report Currency2='USD'

      Job Setup

      If the Office is configured for CFDI (Comprobante Fiscal Digital por Internet) electronic invoices, the CFDI Settings option will appear on the Settings menu list.

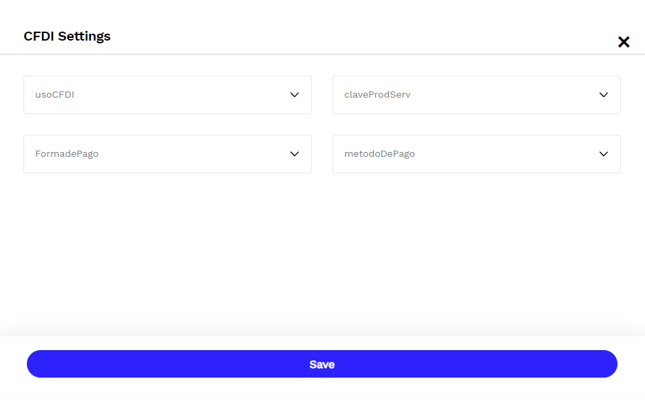

      CDFI Settings

      Select from the pick-list of valid options for the following fields:

      Setting Description
      UsoCFDI Select from a list a CFDI usage code that's defined by the SAT, e.g. G01 (Acquisition of Goods)
      FormadePago Select from a list of payment method codes that the SAT has defined, e.g.  03 (Bank Transfer)
      claveProdServ Select from a list of product codes defined by the SAT, e.g.  Servicios edioriales y de soporte
      metodoDePago Select from a list of payment terms codes defined by the SAT, e.g. PPD (Installment or Deferred)



      This process is new as of February 4, 2024. Prior to this date, agencies used custom labelers on Jobs to define these settings.
